CyberVisuell 15.6” Full HD Pcap. Touch ...

CyberVisuell - 15.6” Full HD Pcap. Touch Industrial Monitor CM-P156HA-CT Price Guide: $1,473

Supplier: ESIS

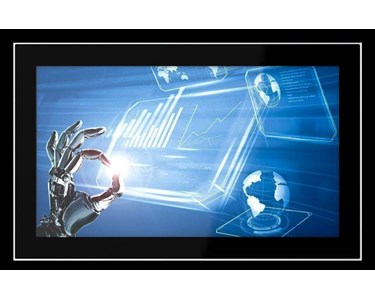

15.6” Full HD Pcap. Touch Industrial Monitor CM-P156HA-CT

1/4

Industrial LED Monitor, P-Cap.Touch, 15.6'', 1920x1080/Regular LCD 1* DVI + 1* VGA + 1* HDMI + 1* DP, DC 12V with 40W adapter By Default, Panel mounting or VESA/VGA+USB cable, IP65 Front

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

15.6” TFT LCD, LED Backlit, Full HD 1920*1080;
Aluminum-magnesium alloy, Anodized treatment, modular designed;
Multi-points (Max. up to 10 points) projective capacitive touchscreen, EETI controller;
Default USB touch interface, optional with RS232 touch interface;
DC 12V power input, optional with wide voltage DC 9~36V;
Multiple DVI + VGA signal input, support synchronous and asynchronous display;
Panel mount, support VESA 75/100 mount, Front surface IP65 rate protection.

Specifications:

Basic
Front panel	Magnesium-Aluminum alloy, anodized treatment
Real panel	SGCC plate sheet, sand-blasting
Control button	OSD button on rear panel
Signal input	1* VGA, 1* DVI
Mount method	Panel mount, support VESA 75/100 mount
Overall dimension	395.6 * 247.9* 51 (mm)
Cut-out dimension	385 * 237 (mm)
Net weight	3.5 KG
IP rate	Front surface IP65
LCD Display
Size/Type	15.6” TFT LCD Display
Resolution	1920 * 1080 (Full HD)
Brightness	400 nits
Contrast ratio	1000:1
Backlit & MTBF	LED backlit & 50 000 hours
Display area	344.23 * 193.54
View angle	70/70/60/60
Touchscreen
Type	Projective capacitive touchscreen
Touch points	Multi points touch, max. up to 10 points
Durability	>100 000 000times
Surface hardness	Mohs 6H
Special treatment	Anti-fingerprint (AF)
Touch controller	EETI
Power & Environmental
Operating temp.	0 ~ + 60 (?)
Storage temp.	-20 ~ + 70 (?)
Relative Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional wide voltage DC 9~36V)
Power consumption	About 20W
EMC	CE/FCC Class A

Features:

15.6” TFT LCD, LED Backlit, Full HD 1920*1080;
Aluminum-magnesium alloy, Anodized treatment, modular designed;
Multi-points (Max. up to 10 points) projective capacitive touchscreen, EETI controller;
Default USB touch interface, optional with RS232 touch interface;
DC 12V power input, optional with wide voltage DC 9~36V;
Multiple DVI + VGA signal input, support synchronous and asynchronous display;
Panel mount, support VESA 75/100 mount, Front surface IP65 rate protection.

Specifications:

Basic
Front panel	Magnesium-Aluminum alloy, anodized treatment
Real panel	SGCC plate sheet, sand-blasting
Control button	OSD button on rear panel
Signal input	1* VGA, 1* DVI
Mount method	Panel mount, support VESA 75/100 mount
Overall dimension	395.6 * 247.9* 51 (mm)
Cut-out dimension	385 * 237 (mm)
Net weight	3.5 KG
IP rate	Front surface IP65
LCD Display
Size/Type	15.6” TFT LCD Display
Resolution	1920 * 1080 (Full HD)
Brightness	400 nits
Contrast ratio	1000:1
Backlit & MTBF	LED backlit & 50 000 hours
Display area	344.23 * 193.54
View angle	70/70/60/60
Touchscreen
Type	Projective capacitive touchscreen
Touch points	Multi points touch, max. up to 10 points
Durability	>100 000 000times
Surface hardness	Mohs 6H
Special treatment	Anti-fingerprint (AF)
Touch controller	EETI
Power & Environmental
Operating temp.	0 ~ + 60 (?)
Storage temp.	-20 ~ + 70 (?)
Relative Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional wide voltage DC 9~36V)
Power consumption	About 20W
EMC	CE/FCC Class A

Read less...

To contact ESIS about CyberVisuell 15.6” Full HD Pcap. Touch Industrial Monitor CM-P156HA-CT use Get a quote.

CM-P156HA-CT _v1.0 Datasheet(0.46MB)
