CyberVisuell Fan-less Control Cabinet Box ...

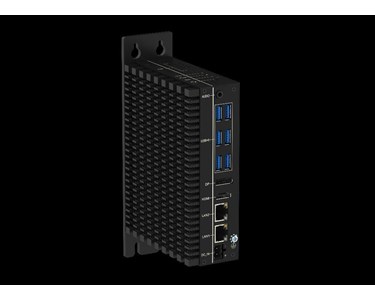

CyberVisuell - Fan-less Control Cabinet Box PC Intel 12th Gen Core i3 TBOX-16D15 Price Guide: $2,395

Supplier: ESIS

Fan-less Control Cabinet Box PC Intel 12th Gen Core i3 TBOX-16D15

Fanless industrial PC with high performance Intel 12th Alder Lake -U Core i3-1215U 2 GbE, 6 USB3.0, 1 HDMI, 1 DP; DC 12/24V input, Cabinet mount

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Rugged & Slim design, fanless design;
Intel 12th Gen. Alder Lake-U Core i3-1215U 2P/4E core processor;
Single DDR4 memory, up to 32GB, 1* M.2 2280 NVMe storage;
DC terminal 12/24V input, Auto detect;
2 GbE, optional with Wi-Fi/BT wireless function;\
6 USB3.0, 1 HDMI, 1 DP, Audio;
2 M.2 fast-speed expansion slots;
Cabinet mount, optional Din-Rail mount;
Industrial operating -20 ~ +60? temp. range.

Specifications:

System
BIOS		SPI AMI EEI BIOS
CPU		Intel 12^th Gen. Alder Lake-U Core i3-1215U processor, 2P/4E-Core
CPU Ghz		P-core Up to 4.40Ghz; E-core up to 3.30Ghz
TDP		15W
Graphic		Intel UHD Graphics for 12^th Gen. Intel processors (Up to 64 EUs, 1.1Ghz)
TPM		Intel PTT TPM2.0
Memory		SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 32GB
Storage		1* M.2 M-Key (PCIe x4 / SATA, Default PCIe 4x, Gen. IV NVMe, 2280) SSD slot
Network		1* Intel I219AT, 1* Intel I226V, Optional support Wi-Fi/BT wireless
Expansion		1* M.2 3042/3052 B-key slot, 1* M.2 E-key slot (Wi-Fi/BT)
Watchdog		0 ~ 256 seconds programmable
Operating system		Win10/Win11; Linux Kernal 5.17 or later
IO interface
Serial port		N/A
Ethernet		2* RJ45, 10/100/1000 Mbps
USB		6* USB3.0
Display		1* HDMI (Max. support 2048 1080 @30Hz), 1 DP++ (Max. 4096*2304 @60Hz)
Audio		1* Mic-in/Line-out (2-in-1, 3.5mm Jack)
Power input		1* 2 pin, DC terminal
Structure
Box structure and surface		Aluminum alloy, anodizing and anti-scratch treatment
Color		Black
Mount method		Cabinet mount, Din-Rail mount (Optional)
Cooling system		Finned aluminum heatsinks
Indicator & Button		Power switch, Power LED, HDD LED
Dimension		150.00mm * 114.00mm * 47.00 mm (194.00mm with mount rack)
Net weight		About 1.0 KG
Power & Environmental
Operating temp.		-20 ~ + 60 (?)
Storage temp.		-40 ~ + 80 (?)
Humidity		10 ~ 95% @ 10C (No condensation)
Vibration		50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock		10G/Peak (11 ms)
Power input		DC 24/12V (Auto Detect)
Power consumption		About 25W
Certificate		CE/FCC/ROHS

Features:

Rugged & Slim design, fanless design;
Intel 12th Gen. Alder Lake-U Core i3-1215U 2P/4E core processor;
Single DDR4 memory, up to 32GB, 1* M.2 2280 NVMe storage;
DC terminal 12/24V input, Auto detect;
2 GbE, optional with Wi-Fi/BT wireless function;\
6 USB3.0, 1 HDMI, 1 DP, Audio;
2 M.2 fast-speed expansion slots;
Cabinet mount, optional Din-Rail mount;
Industrial operating -20 ~ +60? temp. range.

Specifications:

System
BIOS		SPI AMI EEI BIOS
CPU		Intel 12^th Gen. Alder Lake-U Core i3-1215U processor, 2P/4E-Core
CPU Ghz		P-core Up to 4.40Ghz; E-core up to 3.30Ghz
TDP		15W
Graphic		Intel UHD Graphics for 12^th Gen. Intel processors (Up to 64 EUs, 1.1Ghz)
TPM		Intel PTT TPM2.0
Memory		SO-DIMM, DDR4-2666/2933/3200 Mhz, Single slot, Max. up to 32GB
Storage		1* M.2 M-Key (PCIe x4 / SATA, Default PCIe 4x, Gen. IV NVMe, 2280) SSD slot
Network		1* Intel I219AT, 1* Intel I226V, Optional support Wi-Fi/BT wireless
Expansion		1* M.2 3042/3052 B-key slot, 1* M.2 E-key slot (Wi-Fi/BT)
Watchdog		0 ~ 256 seconds programmable
Operating system		Win10/Win11; Linux Kernal 5.17 or later
IO interface
Serial port		N/A
Ethernet		2* RJ45, 10/100/1000 Mbps
USB		6* USB3.0
Display		1* HDMI (Max. support 2048 1080 @30Hz), 1 DP++ (Max. 4096*2304 @60Hz)
Audio		1* Mic-in/Line-out (2-in-1, 3.5mm Jack)
Power input		1* 2 pin, DC terminal
Structure
Box structure and surface		Aluminum alloy, anodizing and anti-scratch treatment
Color		Black
Mount method		Cabinet mount, Din-Rail mount (Optional)
Cooling system		Finned aluminum heatsinks
Indicator & Button		Power switch, Power LED, HDD LED
Dimension		150.00mm * 114.00mm * 47.00 mm (194.00mm with mount rack)
Net weight		About 1.0 KG
Power & Environmental
Operating temp.		-20 ~ + 60 (?)
Storage temp.		-40 ~ + 80 (?)
Humidity		10 ~ 95% @ 10C (No condensation)
Vibration		50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock		10G/Peak (11 ms)
Power input		DC 24/12V (Auto Detect)
Power consumption		About 25W
Certificate		CE/FCC/ROHS

Read less...

To contact ESIS about CyberVisuell Fan-less Control Cabinet Box PC Intel 12th Gen Core i3 TBOX-16D15 use Get a quote.

TBOX-16D15 _V3.0_Datasheet_241009(0.73MB)
