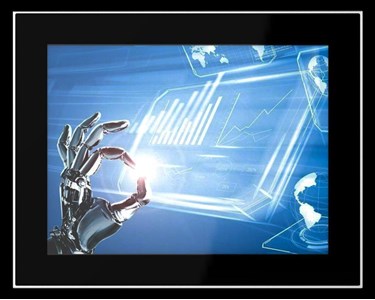

CyberVisuell 12.1” XGA Pcap. Touch Industrial ...

CyberVisuell - 12.1” XGA Pcap. Touch Industrial LED Monitor CM-P121-CT Price Guide: $1,132

Supplier: ESIS

12.1” XGA Pcap. Touch Industrial LED Monitor CM-P121-CT

1/4

Industrial LED Monitor, P-Cap. Touch, 12.1'', 1024*768, Industrial LCD, DVI+VGA, DC 12V with 40W adapter By Default, Panel mounting or VESA/VGA+USB cable, IP65 Front

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

2.1” TFT LCD, LED Backlit, XGA 1024*768;
Aluminum-magnesium alloy, Anodized treatment, modular designed;
Multi-points (Max. up to 10 points) projective capacitive touchscreen, EETI controller;
Default USB touch interface, optional with RS232 touch interface;
DC 12V power input, optional with wide voltage DC 9~36V;
Multiple DVI + VGA signal input, support synchronous and asynchronous display;
Panel mount, support VESA 75/100 mount, Front surface IP65 rate protection.

Specifications:

Basic
Front panel	Magnesium-Aluminum alloy, anodized treatment
Real panel	SGCC plate sheet, sand-blasting
Control button	OSD button on rear panel
Signal input	1* VGA, 1* DVI
Mount method	Panel mount, support VESA 75/100 mount
Overall dimension	306 * 242.5 * 51 (mm)
Cut-out dimension	295 * 232 (mm)
Net weight	2.7 KG
IP rate	Front surface IP65
LCD Display
Size/Type	12.1” TFT LCD Display
Resolution	1024 * 768 (XGA)
Brightness	350 nits
Contrast ratio	800:1
Backlit & MTBF	LED backlit & 30 000 hours
Display area	245.76 * 184.32
View angle	80/80/80/80
Touchscreen
Type	Projective capacitive touchscreen
Touch points	Multi points touch, max. up to 10 points
Durability	>100 000 000times
Surface hardness	Mohs 6H
Special treatment	Anti-fingerprint (AF)
Touch controller	EETI
Power & Enviromental
Operating temp.	-20 ~ + 70 (?)
Storage temp.	-30 ~ + 80 (?)
Relative Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional wide voltage DC 9~36V)
Power consumption	About 15W
EMC	CE/FCC Class A

Features:

2.1” TFT LCD, LED Backlit, XGA 1024*768;
Aluminum-magnesium alloy, Anodized treatment, modular designed;
Multi-points (Max. up to 10 points) projective capacitive touchscreen, EETI controller;
Default USB touch interface, optional with RS232 touch interface;
DC 12V power input, optional with wide voltage DC 9~36V;
Multiple DVI + VGA signal input, support synchronous and asynchronous display;
Panel mount, support VESA 75/100 mount, Front surface IP65 rate protection.

Specifications:

Basic
Front panel	Magnesium-Aluminum alloy, anodized treatment
Real panel	SGCC plate sheet, sand-blasting
Control button	OSD button on rear panel
Signal input	1* VGA, 1* DVI
Mount method	Panel mount, support VESA 75/100 mount
Overall dimension	306 * 242.5 * 51 (mm)
Cut-out dimension	295 * 232 (mm)
Net weight	2.7 KG
IP rate	Front surface IP65
LCD Display
Size/Type	12.1” TFT LCD Display
Resolution	1024 * 768 (XGA)
Brightness	350 nits
Contrast ratio	800:1
Backlit & MTBF	LED backlit & 30 000 hours
Display area	245.76 * 184.32
View angle	80/80/80/80
Touchscreen
Type	Projective capacitive touchscreen
Touch points	Multi points touch, max. up to 10 points
Durability	>100 000 000times
Surface hardness	Mohs 6H
Special treatment	Anti-fingerprint (AF)
Touch controller	EETI
Power & Enviromental
Operating temp.	-20 ~ + 70 (?)
Storage temp.	-30 ~ + 80 (?)
Relative Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional wide voltage DC 9~36V)
Power consumption	About 15W
EMC	CE/FCC Class A

Read less...

To contact ESIS about CyberVisuell 12.1” XGA Pcap. Touch Industrial LED Monitor CM-P121-CT use Get a quote.

CM-P121-CT_ v3.0 Datasheet(0.45MB)
