CyberVisuell Fan-less Control Cabinet Box ...

CyberVisuell - Fan-less Control Cabinet Box PC Intel 12th Gen Core i3 TBOX-16D18 Price Guide: $2,928

Supplier: ESIS

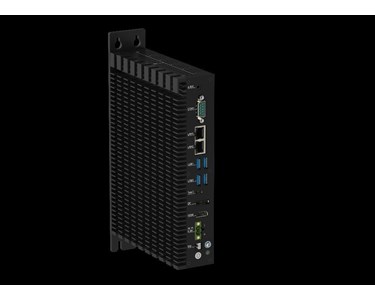

Fan-less Control Cabinet Box PC Intel 12th Gen Core i3 TBOX-16D18

Slim, fanless industrial PC with high performance Intel 12th Gen Core i3 CPU, Win 11 / Win 10 / Linux support, DIN rail or cabinet mount.

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Rugged, slim, fanless designed structure;
DIN rail mount from rear edge, or rear edge screw mount;
Designed for efficient fanless cooling in a vertical position;
High Performance Intel 12th Gen Alder Lake-U Core i3 / i5 / i7 processor;
DC 9-36V power input, with screw terminals and remote switch connector;
Industrial -20 ~ + 60°C operating range;
2 LAN, optional with 4G/5G, and Wi-Fi/BT expansion;
2x USB3.1, 2x USB3.0, 1x USB-C, 1x RS232/RS485/RS422;
1x HDMI, 1x DP++, Audio;
2x M.2 slots and 1x MiniPCIe slot, built in SIM slot.

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel 12th Gen. Alder Lake-U Core i3-1215U / i5-1235U / i7-1255U
CPU Series	Intel 12th Gen Alder Lake-U Core
TDP	15W
Memory	2x SO-DIMM, DDR5-4800MHz, Dual Channel, max. up to 64GB
Storage	1* M.2 2280 M–Key (PCIe Gen.IV x4, NVMe) SSD, 1* M.2 2280 M-Key (SATA) SSD (optionally both slots as NVMe to support RAID 0/1)
Graphic	Intel UHD Graphics (Up to 64 EUs, 1.2Ghz)
Network	1* Intel I226 (2.5GbE), 1* Intel I219 (1GbE), optional Wi-Fi/BT, optional 4G/5G
Audio	On–board Audio Mic-in/Line-out (2-in-1, 3.5mm Jack)
Expansion	1* M.2 3042/3052 B–key slot. 1* M.2 2240 E–key slot, 1* Mini-PCIe slot, 1* SIM slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 IoT 2021 LTSC, Win11 (21H2 or later), Linux Kernel 5.17 or later
I/O
Serial port	COM1: RS232/RS485/RS422 (BIOS control)
Ethernet	2* RJ45
Audio	1* Mic-in/Line-out (2 in 1 Jack)
USB	2* USB3.1 type-A (USB3.2 Gen2x1 10Gbps), 2* USB3.0 type-A (USB3.2 Gen1x1 5Gbps), 1* USB-C (USB3.1 & DP1.4)
Display	1* HDMI1.4, 1*DP++
Power Input	2-pin Screw Terminal
GPIO	Optional 8* GPIO replaces DB9 COM port
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Black
Mount method	Cabinet mount, Din–rail mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	254.50 mm * 151.00mm * 45.00 mm (210.50mm with mount rack)
Net weight	About 1.3 KG
Power & Environmental
Operating temp.	–20 ~ + 60 (°C)
Storage temp.	–40 ~ + 80 (°C)
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 9-36V
Power consumption	About 25W
EMC	CE/FCC Class A

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel 12th Gen. Alder Lake-U Core i3-1215U / i5-1235U / i7-1255U
CPU Series	Intel 12th Gen Alder Lake-U Core
TDP	15W
Memory	2x SO-DIMM, DDR5-4800MHz, Dual Channel, max. up to 64GB
Storage	1* M.2 2280 M–Key (PCIe Gen.IV x4, NVMe) SSD, 1* M.2 2280 M-Key (SATA) SSD (optionally both slots as NVMe to support RAID 0/1)
Graphic	Intel UHD Graphics (Up to 64 EUs, 1.2Ghz)
Network	1* Intel I226 (2.5GbE), 1* Intel I219 (1GbE), optional Wi-Fi/BT, optional 4G/5G
Audio	On–board Audio Mic-in/Line-out (2-in-1, 3.5mm Jack)
Expansion	1* M.2 3042/3052 B–key slot. 1* M.2 2240 E–key slot, 1* Mini-PCIe slot, 1* SIM slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 IoT 2021 LTSC, Win11 (21H2 or later), Linux Kernel 5.17 or later
I/O
Serial port	COM1: RS232/RS485/RS422 (BIOS control)
Ethernet	2* RJ45
Audio	1* Mic-in/Line-out (2 in 1 Jack)
USB	2* USB3.1 type-A (USB3.2 Gen2x1 10Gbps), 2* USB3.0 type-A (USB3.2 Gen1x1 5Gbps), 1* USB-C (USB3.1 & DP1.4)
Display	1* HDMI1.4, 1*DP++
Power Input	2-pin Screw Terminal
GPIO	Optional 8* GPIO replaces DB9 COM port
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Black
Mount method	Cabinet mount, Din–rail mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	254.50 mm * 151.00mm * 45.00 mm (210.50mm with mount rack)
Net weight	About 1.3 KG
Power & Environmental
Operating temp.	–20 ~ + 60 (°C)
Storage temp.	–40 ~ + 80 (°C)
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 9-36V
Power consumption	About 25W
EMC	CE/FCC Class A

Read less...

To contact ESIS about CyberVisuell Fan-less Control Cabinet Box PC Intel 12th Gen Core i3 TBOX-16D18 use Get a quote.

TBOX-16D18 _V3.0_Datasheet_241031(0.78MB)
