CyberVisuell - Fanless Industrial Box PC Celeron TBOX-12415 Price Guide: $1,409

Supplier: ESIS

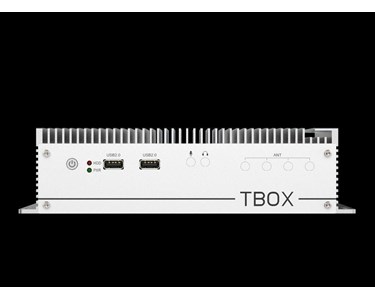

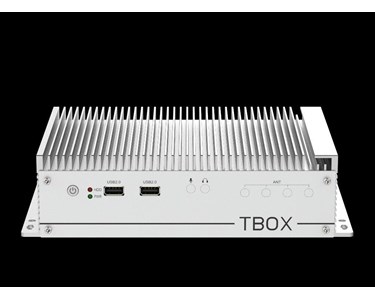

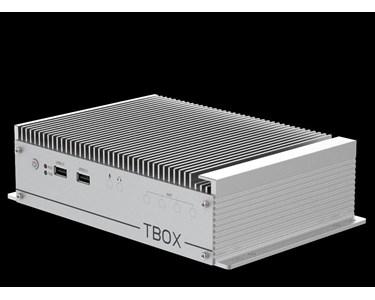

Fanless Industrial Box PC Celeron TBOX-12415

Low Cost fanless industrial box PC’s, with Intel Apollo Lake Celeron J3355 / J3455 CPUs. With serial ports, dual HDMI ports, TPM 2.0 for Win 11 support, 2.5 inch drive bay, and wide temperature operation.

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Rugged & compact, fanlessdesigned box structure;
On–boardIntelApollo Lake J3455 Quad–coreprocessor;
Single DDR4 memory, up to8GB, 1*M.2and 1* 2.5” SATA storage;
DC12Vinput,optional wide voltage DC 9~36V input;
2GLAN,Dual wirelessexpansion4G/5G,WIFI/BTsupport;
6USB(4 USB3.0),6 COM(optional GPIO),2HDMI;
Industrial–20 ~ +70°Coperating range, optional–40~+80°C.

?Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Elkhart Lake J6412, Quad–core processor
CPU Ghz	Quad–core 1.5Ghz, burst to 2.3Ghz, TDP 10W
TDP	Intel PTT TPM2.0
Memory	SO–DIMM, DDR3L–1333/1600 MT/s, Max. up to 8GB
Storage	1M.2 (SATA, 2242), 1 2.5” SATA
Graphic	Intel UHD Graphics 500
Network	2* Intel I211 GBE LAN chip, Optional WIFI+BT (M.2 2230), 4G/5G (M.2 3042/3052)
Audio	On–board Realtek ACL 662 Audio controller
Expansion	1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 /Win11, Linux
I/O

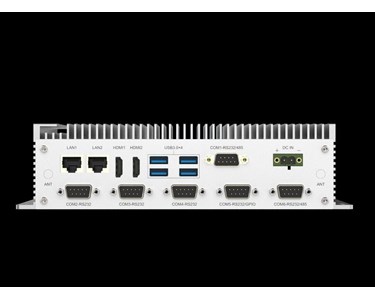

Serial port	COM1: RS485 (Optional RS232), COM2/3/4: RS232, COM5: RS232 (Optional GPIO), COM 6: RS485 (Optional RS232)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Optional Mic–in/Line–out
USB	4* USB3.0 + 2* USB2.0
Display	2* HDMI (Max. support 4096 * 2160 @30Hz)
Power Input	1* 2 pins, Phenix terminal
Optional	8* GPIO (DB9)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Silver
Mount method	Desktop, wall mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 60 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	About 20W
EMC	CE/FCC Class A

?Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Elkhart Lake J6412, Quad–core processor
CPU Ghz	Quad–core 1.5Ghz, burst to 2.3Ghz, TDP 10W
TDP	Intel PTT TPM2.0
Memory	SO–DIMM, DDR3L–1333/1600 MT/s, Max. up to 8GB
Storage	1M.2 (SATA, 2242), 1 2.5” SATA
Graphic	Intel UHD Graphics 500
Network	2* Intel I211 GBE LAN chip, Optional WIFI+BT (M.2 2230), 4G/5G (M.2 3042/3052)
Audio	On–board Realtek ACL 662 Audio controller
Expansion	1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 /Win11, Linux
I/O
Serial port	COM1: RS485 (Optional RS232), COM2/3/4: RS232, COM5: RS232 (Optional GPIO), COM 6: RS485 (Optional RS232)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Optional Mic–in/Line–out
USB	4* USB3.0 + 2* USB2.0
Display	2* HDMI (Max. support 4096 * 2160 @30Hz)
Power Input	1* 2 pins, Phenix terminal
Optional	8* GPIO (DB9)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Silver
Mount method	Desktop, wall mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 60 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	About 20W
EMC	CE/FCC Class A

Read less...

To contact ESIS about CyberVisuell Fanless Industrial Box PC Celeron TBOX-12415 use Get a quote.

TBOX-12415 _v1.0 Datasheet(0.50MB)
